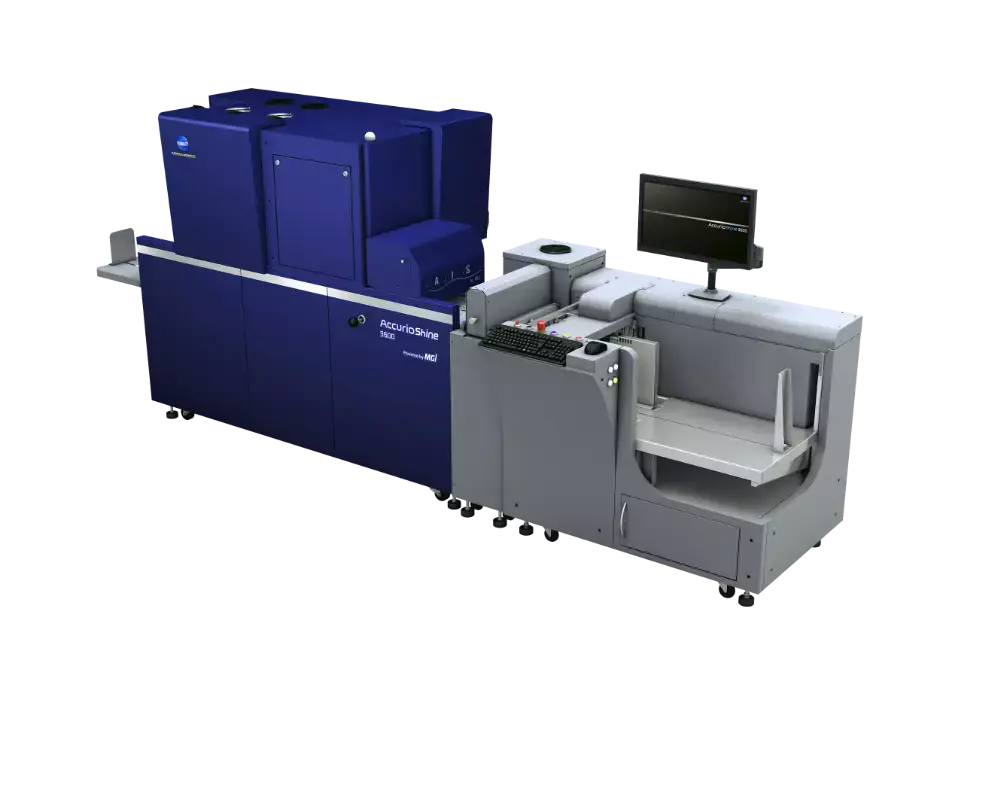

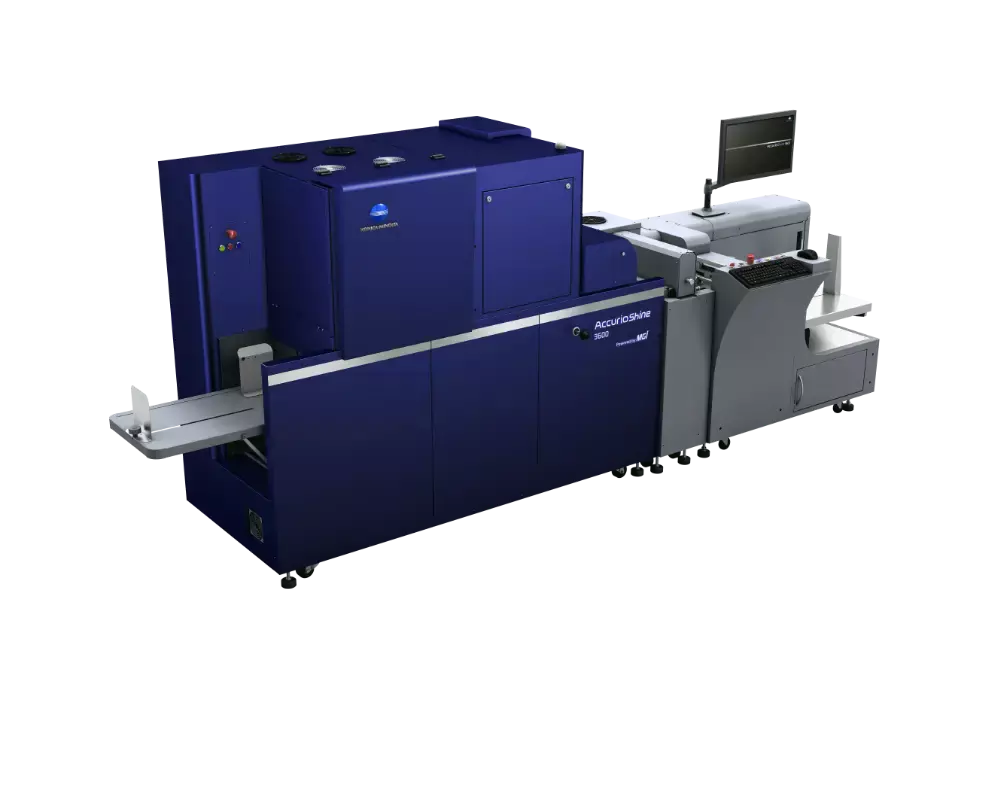

AccurioShine 3600

Izrada visokokvalitetnih poslova ispisa je jedno, ali kako zadovoljiti potrebe zahtjevnih kupaca koji traže dodatnu vrijednost i sofisticiranost? Uz AccurioShine 3600 možete stvoriti spektakularne i nezaustavljive tiskane proizvode koji će odmah privući svačiju pozornost.

DIGITALNI najsuvremeniji uređaj za oplemenjivanje brzine do 2077 A3 listova na sat za kraće vrijeme isporuke i jednostavnu pripremu za rad
KONICA MINOLTA INKJET TEHNOLOGIJA s ekskluzivnim Konica Minolta drop-on-demand piezoelektričnim ispisnim glavama za visoku kvalitetu
VARIJABILNA DEBLJINA LAKA između 21 i 116 mikrona za 2D i 3D-taktilne efekte u jednom prolazu
JEDNOSTAVNOST UPOTREBE – bez zaslona, ploča i čišćenja između poslova. Sve što je potrebno je digitalna maska za dodavanje laka različite debljine izravno na toner ili offset ispis. To omogućuje unosnije kratke i srednje naklade, bržu pripremu ispisa, uklanjanje ploča, sita i matrica i izradu složenijih poslova na širokom rasponu podloga, tonera i offset ispisa.
KOMPAKTNA VELIČINA, BESKONAČNE MOGUĆNOSTI - Vlastita, kompletna proizvodnja i spot UV lakiranje za završnu obradu prototipova bez upotrebe sita, panela ili matrica.
NJEŽAN PREMA OKOLIŠU - AccurioShine 3600 ima sustav zatvorenog kruga, ne ostavlja ostatke tinte ili laka i dizajniran je da spriječi bilo kakvo čišćenje ili rasipanje materijala između poslova, pomažući vam da smanjite potrošnju papira, laka i električne energije.

KONTAKTIRAJTE NAS!

Podijelite

Osobine

Ključne značajke

Ključne značajke uređaja AccurioShine 3600

UMJETNA INTELIGENCIJA SMARTSCANNER®
- Skener cijele stranice
- Nisu potrebne oznake za izrezivanje
- Registracija premaza s lista na list
- Prilagodba nagiba, pomaka, stezanja i rastezanja u hodu
- Dodatna rasvjeta za metalizirane podloge
CORONA TREATMENT SYSTEM
- Opcijski in-line sustav omogućuje korištenje većeg spektra medija
- Poboljšava prianjanje laka i povećava kvalitetu uljepšavanja na digitalnim ispisima
- Dodatni ormarić s ozonskim filterom
ECO-FRIENDLY IN-LINE LED DRYER for an ozone-free environment
- On-the-fly drying and curing with integrated LEDs
- Nije potrebno dodatno vrijeme sušenja
- Bez ozona i bez zagrijavanja zahvaljujući LED tehnologiji
- Mala potrošnja energije
VISOKA PRODUKTIVNOST uz ispis u jednom prolazu
- Do 2 077 A3 listova na sat s debljinom laka od 21 µm (2D / ravni način rada)
- 1 260 A3 listova na sat s debljinom laka od 51 µm (3D način rada)
- Do 547 A3 listova na sat s debljinom laka od 116 µm (3D način rada)

SNAŽAN SOFTVERSKI PAKET
- On-the-fly job manager (Voditelj poslova u hodu)
- Workstation image editor (Uređivač slika radne stanice)
- Catalogue of different patterns (Katalog različitih uzoraka)
- Kalkulator troškova rada koji procjenjuje troškove proizvodnje prije navođenja poslova
- Intuitive operation (Intuitivno djelovanje)
- Otklanja probleme kupaca vezano za pripreme za tisak
- Štedi vrijeme i novac
UNIVERZALNI LAK
- Za 2D i 3D efekte sjaja
- Nema potrebe za mijenjanjem laka ili čišćenjem između poslova
- Lak dolazi u spremniku od 10 litara
LAKIRANJE DIGITALNIH I OFSET ISPISA
- Lakiranje na toneru bez laminiranja
- Lakiranje na offset otisku
- Točna registracija lista na list s tehnologijom Smart Scanner® umjetne inteligencije
- Brzo i jednostavno postavljanje podržava poslovni model digitalnog ispisa

Specifikacije & Preuzimanje

Specifikacije

Technical Specifications
Printing technology	Konica Minolta’s exclusive inkjet engine technology; Drop-on-Demand (DoD) technology; piezoelectric printheads, developed and manufactured by Konica Minolta; single pass printing; flexible and scalable printing architecture
Coating thicknesses	Depending on your file, the inks used and the type of surface of your sheet, the coating thickness can vary. On laminated and aqueous coating: 21 μm – 116 μm for 3D raised effects and tactile finish. On toner and coated paper: 30 μm – 116 μm for 3D raised effects and a tactile finish
Production speed	In 2D/flat mode: Up to 2,077 A3 sheets per hour (with 21 μm) In 3D/raised mode: Up to 1,260 A3 sheets per hour (with 51 μm) Up to 547 A3 sheets per hour (with 116 micron)
Registration	SmartScanner coupled with Artificial Intelligence (AIS) for fully automated sheet-to-sheet registration process in real time. No crop marks required.
Formats	Min. 21 x 29.7 cm Max. 36.4 x 75.0 cm Max. printable width 35.3 cm
Substrate thickness	Min: 135 g/m2 and not less than 150 μm or 6 mil before printing and lamination; Max: 450 g/m2 and not more than 450 μm or 18 mil before printing and lamination; Motorized height adjustment of print heads
Substrates*	Printing on most matte or glossy laminated surfaces, with or without aqueous coating, layered paper, plastics, PVC and other coated materials.
Varnish on toner	Spot 3D One coat directly onto most digital prints with no lamination or coating required.
UV coatings and capacity	Varnish delivered with a 10-litre tank capacity
High capacity automatic feeder	Processes a paper stack of up to 28 cm; 2,500 sheets at 135 g/m2
Paper tray	Handles a paper stack of up to 15 cm or approximately 1,250 sheets at 135 g/m2 Accepts all paper formats from A4 up to 36.4 x 75 cm
Paper path	100 % flat paper path; vacuum feed system; air feed system; automatic double sheet detection; inline LED dryer; on-the-fly drying and curing via integrated LED
Maintenance & remote technical support	Daily maintenance completed in less than 10 minutes; majority of procedures is automated; automatic cleaning system; from cold start to production in less than 10 minutes; remote troubleshooting and support via included video/web camera (high speed internet connection required)
Operator panel	Integrated user-friendly LCD touch-screen
Options	Automatic PDF File Converter (including RIP); VDP barcode camera (requires Automatic PDF File Converter); AIS SmartScanner Lighting for metallized substrates
Additional Option	Corona One for AccurioShine 3600 Ozone Filter Cabinet for AccurioShine 3600
Dimensions (L x W x H)	4.02** x 1.41 x 1.80 metres; 1 metre clearance required on all 4 sides
Weight	± 1,200 kg
Electrical requirements	V: 220-240V 50-60Hz; A: 20; plug: 2 plugs CEE 17 IP44 32A (32A 250V, 1P+N+PE); RCD 30mA; C curve 32A breaker
Operating conditions	Temperature: 18 to 30°C Relative humidity: between 30 – 55% (no condensation)
Respects the environment	Eliminates resource waste (electricity, paper and varnish); no plates (offset) or screens (screen printing); no cleanup or preparation between jobs; drastic reduction in use of consumables and bulk packaging; coating without volatile solvent.

The default sheet format is A3, unless otherwise stated
1) with an additional option installed
2) speed will vary according to printing parameters used
3) confirm substrate/toner compability with Konica Minolta
* The used substrate needs to be either coated or laminated.
Otherwise the media will absorb the varnish and the desired effect might get lost.
** No paper extensions available.

All specifications refer to A4-size paper of 135 gsm quality.
The support and availability of the listed specifications and functionalities varies depending on operating systems, applications and network protocols as well as network and system configurations.
The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (5% coverage of A4). The actual life of each consumable will vary depending on use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
Some of the product illustrations contain optional accessories.
Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
Konica Minolta does not warrant that any prices or specifications mentioned will be error-free.
All brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.

Preuzimanje

AccurioShine 3600 tehničke specifikacije

PREUZMITE BROŠURU (ENG)

Proučite AccurioShine 3600 brošuru

U tiskarskoj industriji brzina i cijena su dva najvažnija faktora za uspjeh tvrtke. Sada, zahvaljujući AccurioShine 3600, imate novi maštovit alat koji može zadovoljiti zahtjevne potrebe današnjih zahtjeva za ispisom i voditi brigu o vašem poslovanju. Kao samostalno rješenje, AccurioShine 3600 dodaje 2D i 3D efekte sjaja po razumnoj cijeni i bez kompliciranih koraka konvencionalnih sustava. S potpuno digitalnim AccurioShine 3600 sustavom, koji ima najsuvremeniju tehnologiju automatskog skeniranja i ekološki prihvatljivu LED sušilicu, od kojih su sve impresivno kompaktne veličine, svojim kupcima možete ponuditi cijeli niz visokoučinkovitih završnih obrada učinaka uz povećanje profita.
